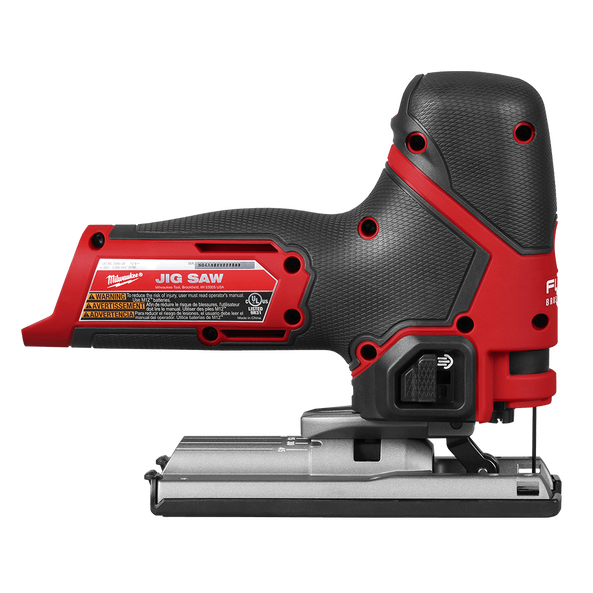

M12FJS0 M12 FUEL™ JIGSAW (TOOL ONLY)
Designed for the professional carpenter and remodeler, the M12 FUEL™ Jig Saw is optimised for power and precision on the jobsite. The M12 FUEL™ Jig Saw delivers Fast 12V Blade Speed Under Load, Ease of Control in More Orientations, and Maximum Cut Line Visibility. The POWERSTATE™ Brushless Motor and REDLINK PLUS™ Intelligence delivers 3,000 strokes per minute at a 22mm stroke length for clean, controlled cuts in a wide variety of finish materials. The compact size, low vibration, and ergonomic barrel-grip design provide maximum control across standard and inverted orientations of usage. The Jig Saw is equipped with an On/Off LED light and On/Off dust blower to optimise cut line visibility for the application at hand. The M12™ FUEL Jig Saw features orbital action with 5 adjustment levels, variable speed dial, blade storage, tool-less blade change, a durable aluminium base plate with bevel detents, and is backed by MILWAUKEE®’s 5-year power tool warranty.
FEATURES
POWERSTATE™ Brushless Motor: Generates the power to cut hardwoods and metals under load.
REDLINK PLUS™ Intelligence: Ensures maximum performance and protects from overloads, heating, and over-discharge.

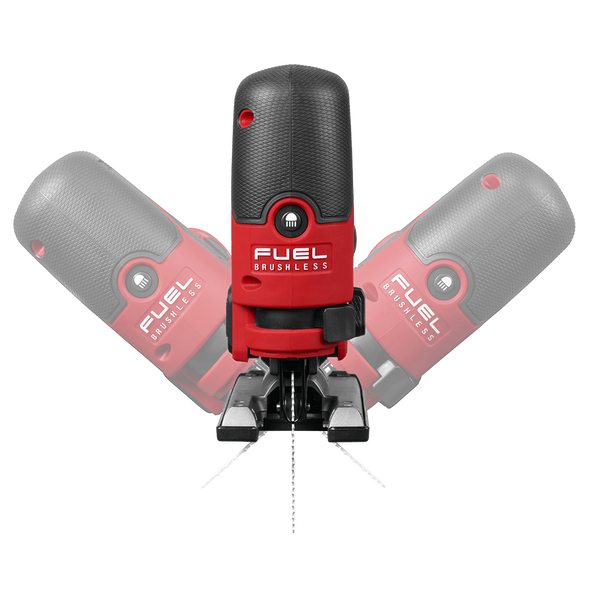

Ergonomic barrel grip design delivers more control and enhanced maneuverability.
Grip is close to the workpiece, allowing for maximum control and precise cuts.
Variable speed dial provides 5 adjustment settings that range from 800 - 3,000 SPM.
Orbital action with 5 adjustment levels offers cut versatility in application.
LED light illuminates the workpiece and allows user to turn off during inverted use.
Integrated blower clears the cut line of debris and allows user to turn off when using dust extraction.
Accepts T-Shank jig saw blades.
On-board blade storage.
Tool-free quick eject blade change
Durable aluminum base plate with bevel detents at 0°, 15°, 30°, and 45°.
On-board hex wrench for quick, efficient bevel adjustments.
WHAT'S INCLUDED
(1) M12 FUEL™ Jigsaw (Tool Only) [M12FJS0]
(1) Blade
(1) Dust Cover
(1) Splinter Guard
(1) Vacuum Dust Tube
(1) Shoe Cover
(1) Hex Wrench
(Not Included) Battery & Charger
SPECIFICATIONS
PLATFORM M12 FUEL™
VOLTAGE 12V
SPM 800 - 3,000
ORBITAL SETTINGS 5
LED LIGHT Yes, On/Off
MAXIMUM BEVEL CAPACITY 45°
BLADET- Shank
STROKE LENGTH 22mm (7/8")
SPEED SETTINGS 6
LENGTH 226mm
WIDTH 74mm
HEIGHT 183mm
WEIGHT 1.54kg
WARRANTY 5 Year
CUT LINE BLOWER Yes, On/Off
