0601B19240 GCM 8 SDE PROFESSIONAL SLIDING MITRE SAW
Powerful mitre saw for various applications and materials
Lightweight and compact, with convenient transport handle for one-handed transport and high mobility
Variable cutting speed ensures high versatility in various materials
Fast, tool-less saw blade changes ensure easy and convenient handling
TECHNICAL DATA
The most important data
Cutting capacity, 0° 70 x 312 mm
Cutting capacity, 45° mitre 70 x 214 mm
Cutting capacity, 45° bevel 48 x 312 mm
Mitre setting 52 ° L / 60 ° R
Bevel setting 47 ° L / 47 ° R
Tool dimensions (width x length x height) 910 x460 x410 mm
No-load speed* 3,500 – 5,000 rpm
Saw blade diameter 216 mm
Saw blade bore diameter 30 mm
Weight 18.5 kg
Rated input power 1,600 W
Packaging dimensions (width x length x height) 475 x 850 x 445 mm
Total vibration values (Sawing wood)
Vibration emission value ah 2.5 m/s²
Uncertainty K 1.5 m/s²
Noise/vibration information
Sound pressure level 98 dB(A)
Sound power level 108 dB(A)
Uncertainty K 3 dB
The A-rated noise level of the power tool is typically as follows: Sound pressure level 98 dB(A); Sound power level 108 dB(A). Uncertainty K= 3 dB.
* You can find more information about the deviations in the following link: Technical features of products
GCM 8 SDE PROFESSIONAL: FURTHER INFORMATION
Product Highlights
Power and flexibility in one: The GCM 8 SDE Professional allows quick and precise work in almost any type of material. Its convenient, one-handed transport handle makes it lightweight and compactly designed for jobs on the go. Variable cutting speed enables high flexibility when cutting materials like plastic and aluminium. For highest convenience, it ensures quick and tool-less sawblade changes.
Equipment & Application

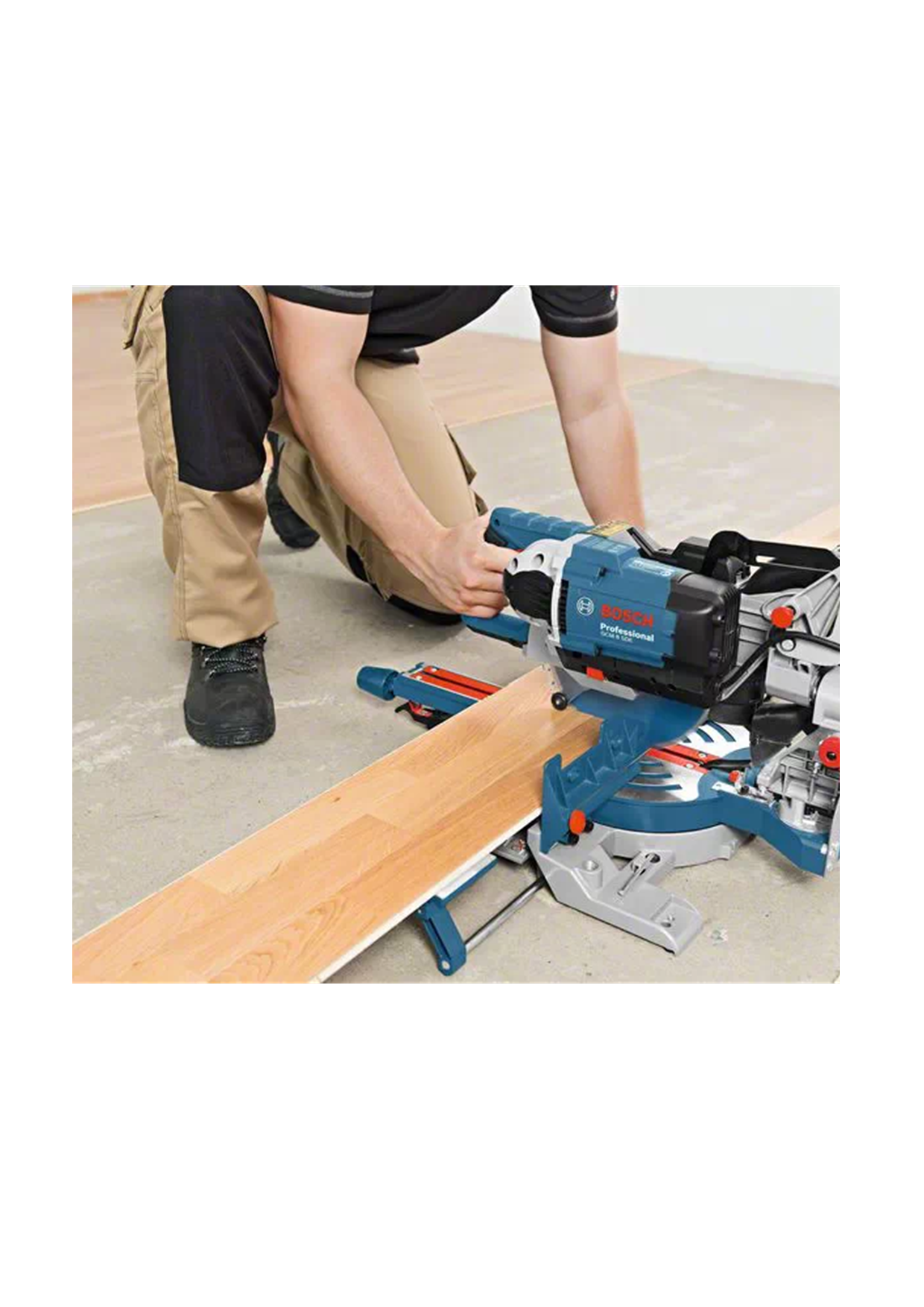

This mitre saw is intended for cross, mitre, bevel and groove cuts in wood, timber beams, and wood composites as well as board materials, floor panels, aluminium, and plastic. It is compatible with the Bosch Click & Clean dust extraction system as well as various stands.
Additional Information
The GCM 8 SDE Professional also includes features such as 2-point dust extraction, bevel detent turrent, precision laser, soft start, double-sided tilt adjustment, and speed selection.
