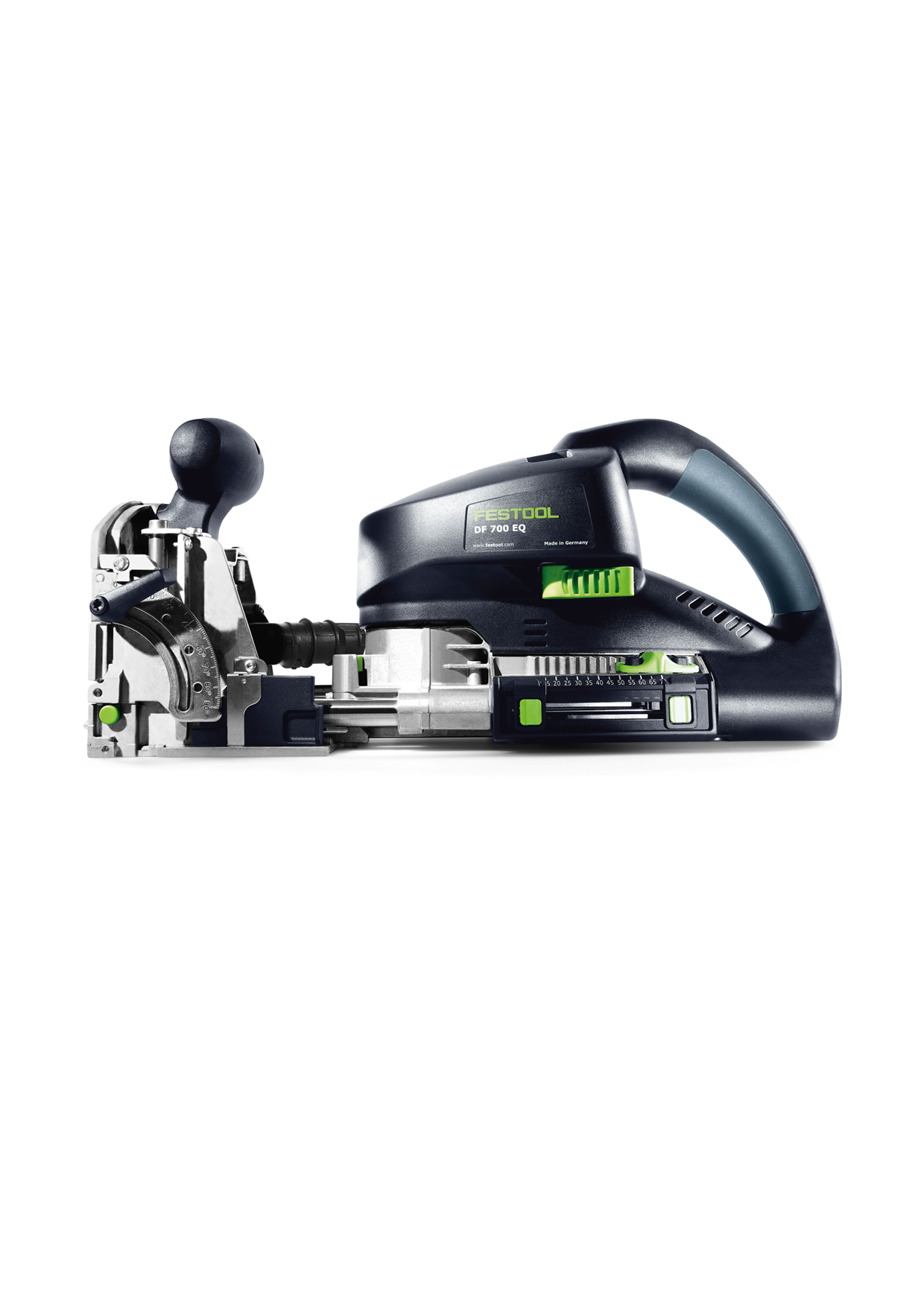

576429 DF 700 DOMINO Joining Machine in Systainer.
Features
Time savings of up to 50% in comparison with stationary machines on solid joints up to a dowel size of 14 x 140 mm.
Unique patented pendulum routing principle enables smooth, accurate work as well as holes without any scorch marks.
DOMINO, cutter, dowel up to 14 x 140 mm, removable corner and surface connectors and compatible system accessories for virtually unlimited jointing possibilities.
Main applications
Solid wood furniture in frame and tunnel design
Frame construction of house doors and interior doors
Manufacture of tables and chairs
Creation of stable mitre joints
Folded and profiled door frames in furniture construction
Connection of wide cornices (e.g. plates)
Frame and stand constructions in non-supported timber structure (exterior and interior area)
Features
Time savings of up to 50% in comparison with stationary machines on solid joints up to a dowel size of 14 x 140 mm.
Unique patented pendulum routing principle enables smooth, accurate work as well as holes without any scorch marks.
DOMINO, cutter, dowel up to 14 x 140 mm, removable corner and surface connectors and compatible system accessories for virtually unlimited jointing possibilities.
Main applications
Solid wood furniture in frame and tunnel design
Frame construction of house doors and interior doors
Manufacture of tables and chairs
Creation of stable mitre joints
Folded and profiled door frames in furniture construction
Connection of wide cornices (e.g. plates)
Frame and stand constructions in non-supported timber structure (exterior and interior area)
Features
Time savings of up to 50% in comparison with stationary machines on solid joints up to a dowel size of 14 x 140 mm.
Unique patented pendulum routing principle enables smooth, accurate work as well as holes without any scorch marks.
DOMINO, cutter, dowel up to 14 x 140 mm, removable corner and surface connectors and compatible system accessories for virtually unlimited jointing possibilities.
Main applications
Solid wood furniture in frame and tunnel design
Frame construction of house doors and interior doors
Manufacture of tables and chairs
Creation of stable mitre joints
Folded and profiled door frames in furniture construction
Connection of wide cornices (e.g. plates)
Frame and stand constructions in non-supported timber structure (exterior and interior area)
Tech Specs
Tool Weight (kg) 5.2 kg
No Load Speed (rpm) 21,000 rpm
Cutting Depth (mm) 70 mm
Dust Extraction Connection Diameter (mm) 27 mm
Cutter Diameter (mm) 8, 10, 12, 14 mm
Mitre Routing (°) 0 - 90 °
Power Lead Type Plug-it Lead
Power Source Corded
Power Consumption (W or kW) 720 W
Motor Type Brushed
