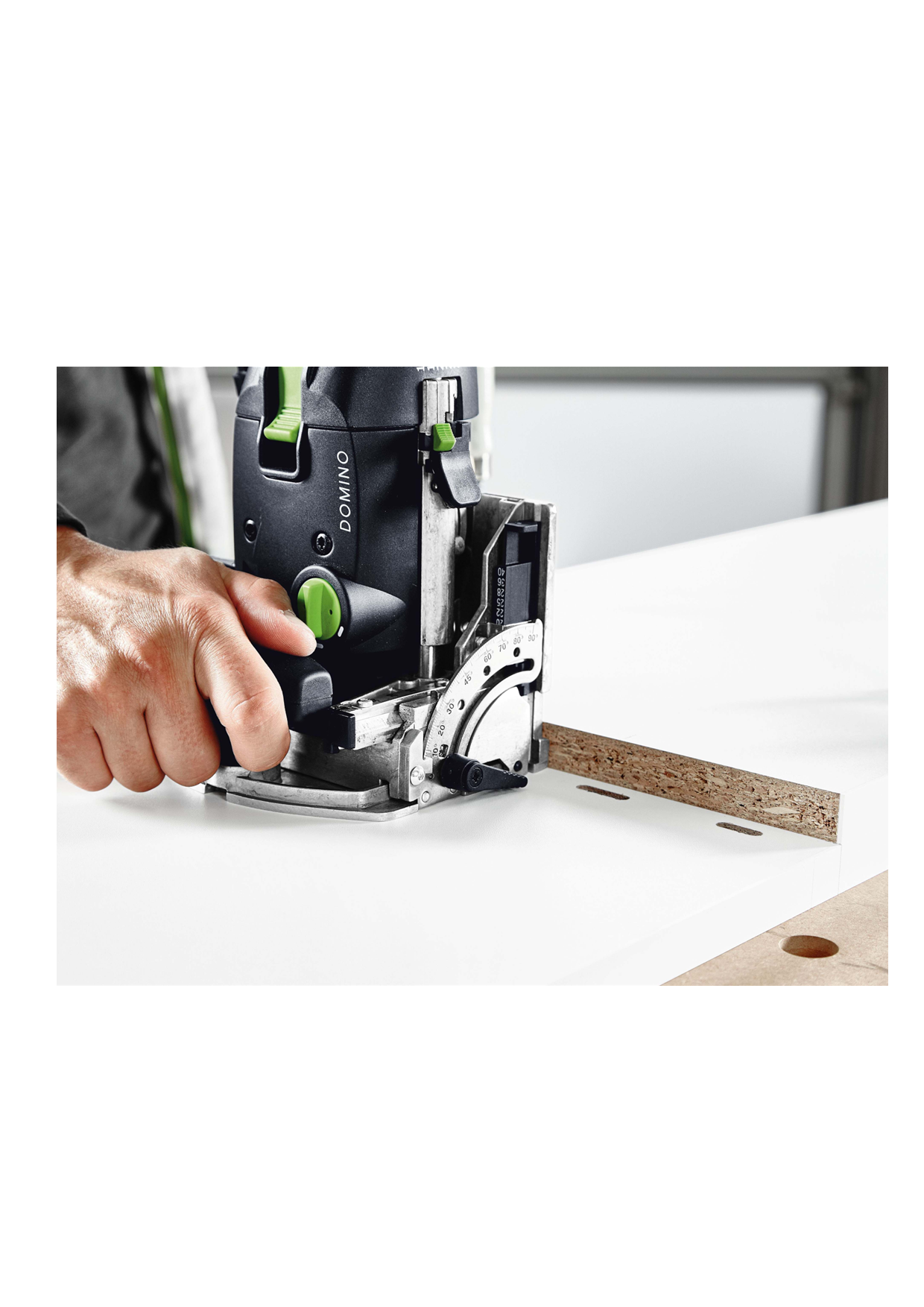

576416 DOMINO DF 500 Q-PLUS
More precise joints.
Diverse use with dowels from 4x20 mm to 10x50 mm
Patented routing principle unique to hand-held machines for accurate work with no kickbacks
Stops that are quick and easy to adjust, for accurate results
Ergonomic shape for ease of operation in any position
Rotation-proof joint with DOMINO dowels providing maximum stability
System accessories compatible with both DOMINO jointers
More precise joints.
Diverse use with dowels from 4x20 mm to 10x50 mm
Patented routing principle unique to hand-held machines for accurate work with no kickbacks
Stops that are quick and easy to adjust, for accurate results
Ergonomic shape for ease of operation in any position
Rotation-proof joint with DOMINO dowels providing maximum stability
System accessories compatible with both DOMINO jointers
More precise joints.
Diverse use with dowels from 4x20 mm to 10x50 mm
Patented routing principle unique to hand-held machines for accurate work with no kickbacks
Stops that are quick and easy to adjust, for accurate results
Ergonomic shape for ease of operation in any position
Rotation-proof joint with DOMINO dowels providing maximum stability
System accessories compatible with both DOMINO jointers
Items Included in this Kit
- DOMINO cutter D5
- Vertical Stop
- Operation tool in SYSTAINER SYS 2 T-LOC
Note - some accessories shown in the video are optional extras in New Zealand. They are available for purchase but not included in this set.
Main areas of use
Furniture manufacture
Shopfitting/Interior fitting
Window construction
Exhibition stand construction
For panel joins
For frame and rack joints
Technical data
Dust extraction connection dia. 27 mm
Power consumption 420 W
Idle engine speed 25500 min?¹
Depth stop for routing depth 12, 15, 20, 25, 28 mm
Max. routing depth 28 mm
DOMINO slot cutter dia. 4, 5, 6, 8, 10 mm
Routing height adjustment 5-30 mm
Mitre routing 0 - 90 °
Weight 3.2 kg
