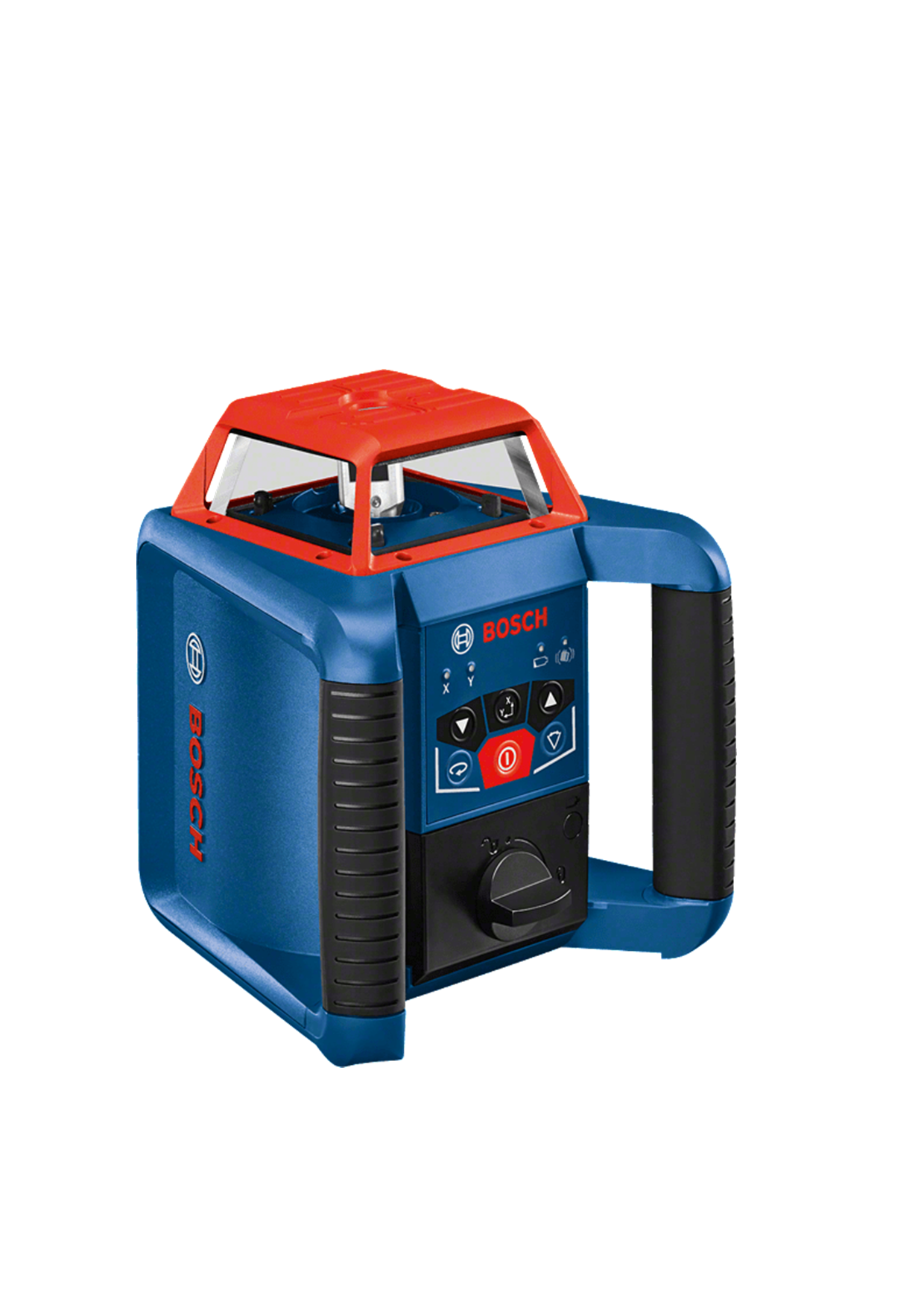

0601061S40 GRL 350 HV PROFESSIONAL ROTATION LASER
Rotational laser for horizontal and vertical application with manual dual slope
Versatile - Horizontal and vertical manual dual slope function enable change in grade in two-axis application
Flexible - Variable-speed and Scan-angle selection allow optimum usability at different lighting conditions
Robust - IP 56 rated to protect against dust and water for tough jobsite conditions, with shock-warning function to alert error due to vibration
Rotational laser for horizontal and vertical application with manual dual slope
Versatile - Horizontal and vertical manual dual slope function enable change in grade in two-axis application
Flexible - Variable-speed and Scan-angle selection allow optimum usability at different lighting conditions
Robust - IP 56 rated to protect against dust and water for tough jobsite conditions, with shock-warning function to alert error due to vibration
Rotational laser for horizontal and vertical application with manual dual slope
Versatile - Horizontal and vertical manual dual slope function enable change in grade in two-axis application
Flexible - Variable-speed and Scan-angle selection allow optimum usability at different lighting conditions
Robust - IP 56 rated to protect against dust and water for tough jobsite conditions, with shock-warning function to alert error due to vibration
TECHNICAL DATA
The most important data
Laser diode 630 – 650 nm, < 5mW
Operating temperature -10 – 50 °C
Storage temperature -20 – 70 °C
Laser class 3R
Working range up to 60 m
Working range with receiver up to 350 m (Diameter)
Accuracy ± 1.5 mm at 30m horizontal, ± 3.0 mm at 30m vertical
Self-levelling range ± 5° (8%)
Levelling time 30 s
Dust and splash protection IP 56
Rotation speed 0/150/300/600 min−1
Power supply 2 x 1.5 V LR20 (D)
Operating time (max.) 30 h
Tripod thread 5/8"
Weight, approx. 1.8 kg
Colour of laser line red
Color of plumb points red
